Vertical Rigging Sleeve – Adhesive

Download our Rigging Sleeves Brochure here for more information.

See Product Size Variations below.

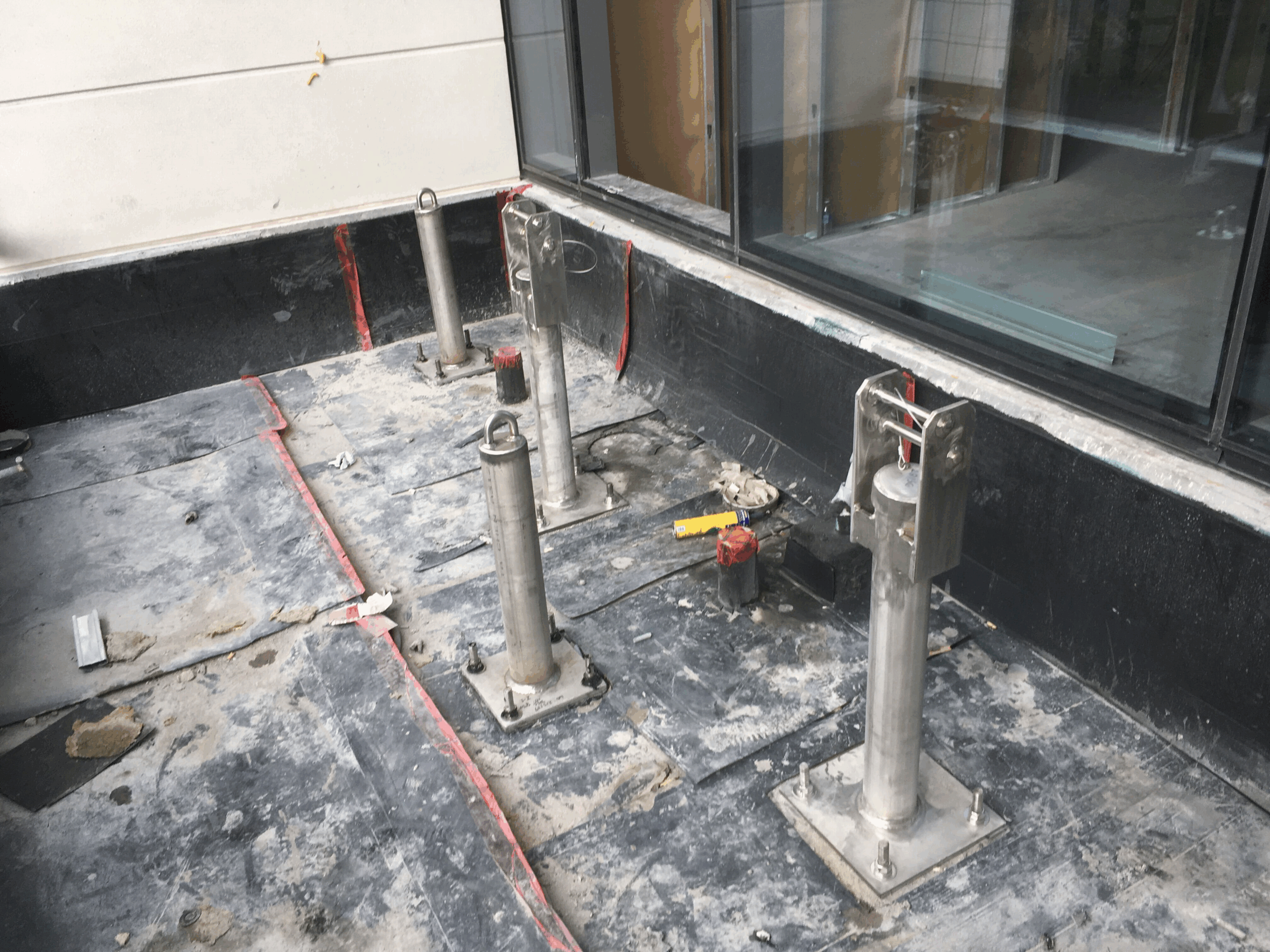

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Head Upper Length Lower Length Total Length Embedment Depth Slab Thk. Min.
EF-FA-RSV4027-037-20 Double Bars 20″ 17″ 37″ 5″ 6″
EF-FA-RSV4027-048-28 Double Bars 28″ 20″ 48″ 5″ 6″
FA-RSV4017-016-09 Single Bar 9″ 7″ 16″ 5″ 6″
FA-RSV4017-024-15 Single Bar 15″ 9″ 24″ 5″ 6″
FA-RSV4017-036-20 Single Bar 20″ 16″ 36″ 5″ 6″
FA-RSV4017-060-30 Single Bar 30″ 30″ 60″ 5″ 6″
FA-RSV4017-120-30 Single Bar 30″ 90″ 120″ 5″ 6″
FA-RSV4027-016-09 Double Bars 9″ 7″ 16″ 5″ 6″
