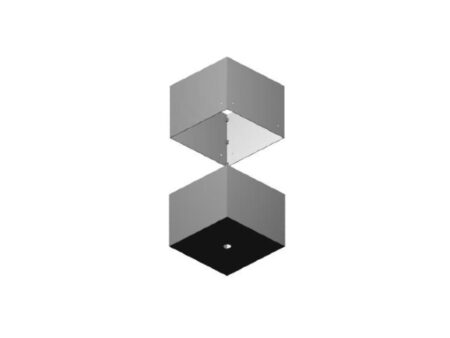

Roof Anchor Accessory – 2 Piece Gravel Box
- Gravel boxes are intended to keep gravel and soil free and clear from around the anchors.
Download our Safety and Tie Back Anchors Brochure here for more information.
See Product Size Variations below.
Description
Product Size Chart
Below is a chart of our standard sizes. More are available upon enquiry
| Model No. | Opening Size | Height Min. | Height Max. | Holes | Application |
| P-GB2-G06071 | 6-1/4″ x 6-1/4″ | 7″ | 11-1/2″ | 1 | Single Bolt Recessed Roof Anchor |
| P-GB2-G0808-04 | 8″ x 8″ | 4″ | 7″ | 0 | Adjustable opened top & bottom |
| P-GB2-G0808-05-01 | 8″ x 8″ | 5″ | 7″ | 0 | Adjustable opened top & bottom w/ 4 lips |
| P-GB2-G0808-07 | 8″ x 8″ | 7″ | 12″ | 0 | Adjustable opened top & bottom |
| P-GB2-G09071 | 9-1/2″ x 9-1/2″ | 7″ | 11-1/2″ | 1 | Single Bolt Flip Up Anchor |
| P-GB2-G1010-06-01 | 10″ x 10″ | 6″ | 8″ | 0 | Adjustable opened top & bottom w/ 4 lips |
| P-GB2-G12074 | 12″ x 12″ | 7″ | 11-1/2″ | 2 | 4 Bolts Flip Up Anchor |
| P-GB2-G2222-07 | 22″ x 22″ | 7″ | 12″ | 0 | Adjustable opened top & bottom |
| P-GB2-G2424-07 | 24″ x 24″ | 7″ | 12″ | 0 | Adjustable opened top & bottom |
| P-GB2-G2424-09 | 24″ x 24″ | 9″ | 16″ | 0 | Adjustable opened top & bottom |
| P-GB2-G2525-05-01 | 25″ x 25″ | 5″ | 7″ | 0 | Adjustable opened top & bottom w/ 4 lips |
| P-GB2-G2525-07 | 25″ x 25″ | 7″ | 12″ | 0 | Adjustable opened top & bottom |
