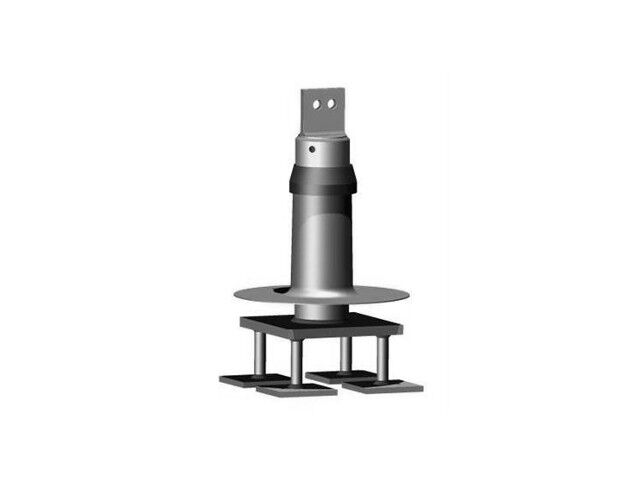

HLL (Hands Free) – End Anchor Support – Roof Mounted – Cast in Place with Back Plates

  • The End Anchor with double holes is for joining two cable spans together when the maximum length of cable is exceeded (i.e. 300ft is generally the maximum length)

Download our HLL Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1800 461.0575

Downloads
  1. PDF - Equipment Detail
  2. DWG - Equipment Detail
Categories: ,

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Post Height Slab Thickness Embedment Depth Flashing Type Flashing Height Add Ins
FA-HLL74E-00A4-1205S 12″ 5″ 4-1/4″ Single Hole End Plate
FA-HLL74E-00A4-1205S-FL1 12″ 5″ 4-1/4″ Conventional 8″ Single Hole End Plate
FA-HLL74E-00A4-1505S 15″ 5″ 4-1/4″ Single Hole End Plate
FA-HLL74E-00A4-1505S-FL1 15″ 5″ 4-1/4″ Conventional 8″ Single Hole End Plate
FA-HLL74E-00A4-1505S-FL2 15″ 5″ 4-1/4″ Conventional 11″ Single Hole End Plate
FA-HLL74E-00A4-1805S 18″ 5″ 4-1/4″ Single Hole End Plate
FA-HLL74E-00A4-1805S-FL1 18″ 5″ 4-1/4″ Conventional 8″ Single Hole End Plate
FA-HLL74E-00A4-1805S-FL2 18″ 5″ 4-1/4″ Conventional 11″ Single Hole End Plate
FA-HLL74E1-00A4-1205S 12″ 5″ 4-1/4″ Double Holes End Plate
FA-HLL74E1-00A4-1205S-FL1 12″ 5″ 4-1/4″ Conventional 8″ Double Holes End Plate
FA-HLL74E1-00A4-1505S 15″ 5″ 4-1/4″ Double Holes End Plate
FA-HLL74E1-00A4-1505S-FL1 15″ 5″ 4-1/4″ Conventional 8″ Double Holes End Plate
FA-HLL74E1-00A4-1805S 18″ 5″ 4-1/4″ Double Holes End Plate
FA-HLL74E1-00A4-1805S-FL1 18″ 5″ 4-1/4″ Conventional 8″ Double Holes End Plate
FA-HLL74E1-00A4-1805S-FL2 18″ 5″ 4-1/4″ Conventional 11″ Double Holes End Plate
