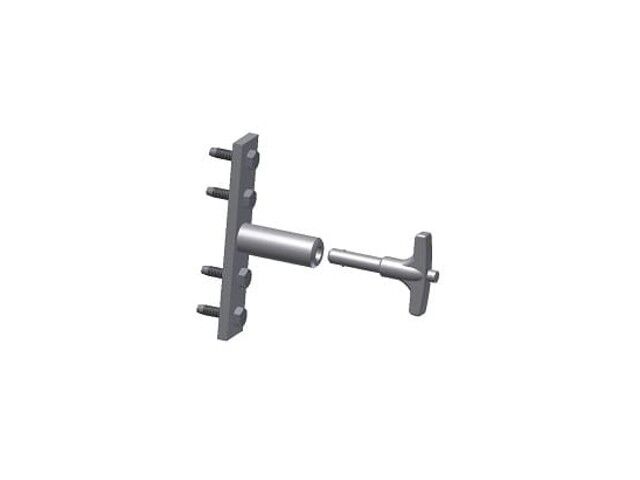

Bolt-to-Mullion Rectangular Intermittent Stabilization Anchor (ISA) on a White Background

Intermittent Stabilization Anchors – Bolt to Mullion – Rectangle

  • Detent Pin usually will be provided by others.
  • The button is bolted to mullion using 1/4 inches diameter Hex Washer Head Self-Drilling Screws (4 screws).
  • The maximum capacity is 600 lbs in any direction (factored load).
  • Spring-loaded detent pin sold separately.

Download our Stabilization Systems Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1800 461.0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Screw Length Plate Size Screw Type Total Length Capacity
EF-FA-STB-RDP112A1-02-01 1″ 1-1/8″ x 5″ 1/4″ Flat HD Countersunk 2″ 600lbs
EF-SA-STB-RDP112A-0225 1″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2-1/4″ 600lbs
FA-STB-RDP112A1-02 1″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2″ 600lbs
FA-STB-RDP112A4-02 4″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2″ 600lbs
