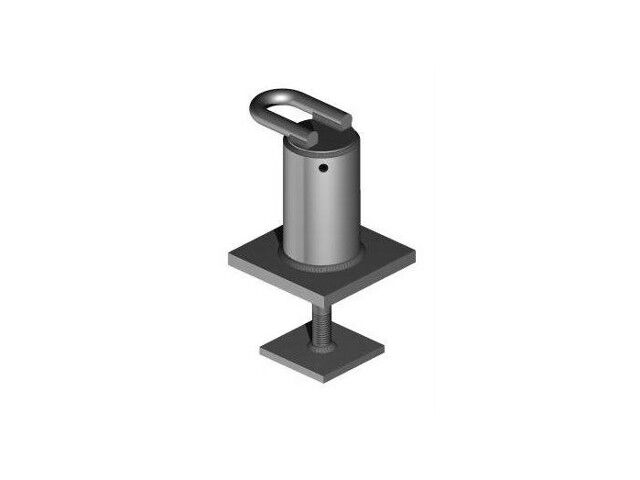

Roof Anchor – Cast in Place – Single Stud – Recessed

  • Recessed steel pier anchors can be used on terraces/balconies.
  • Their low profile allows them to be concealed under pavers and in recessed openings within concrete slabs.
  • The horizontal u-bar makes these anchors more compact than similar anchors with vertical u-bars.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.

Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height Slab Thickness Min. Embed Depth Stud Size Stud Material Add Ins
EF-FA-PBE74-50A1-1006S 10″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50A1-1206S 12″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50W1-041206S 4-1/2″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50W1-0505S 5″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50W1-0605S 6″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50W1-0806S 8″ 6″ 5-1/4″ 7/8″ Stainless Steel None
EF-FA-PBE74-50W1-0906S 9″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0306S 3″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0306S-C 3″ 6″ 5-1/4″ 7/8″ Stainless Steel Cover Plate
FA-PBE74-50W1-0406S 4″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0406S-C 4″ 6″ 5-1/4″ 7/8″ Stainless Steel Cover Plate
FA-PBE74-50W1-0506S 5″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0506S-C 5″ 6″ 5-1/4″ 7/8″ Stainless Steel Cover Plate
FA-PBE74-50W1-0606S 6″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0606S-C 6″ 6″ 5-1/4″ 7/8″ Stainless Steel Cover Plate
FA-PBE74-50W1-0706S 7″ 6″ 5-1/4″ 7/8″ Stainless Steel None
FA-PBE74-50W1-0706S-C 7″ 6″ 5-1/4″ 7/8″ Stainless Steel Cover Plate
