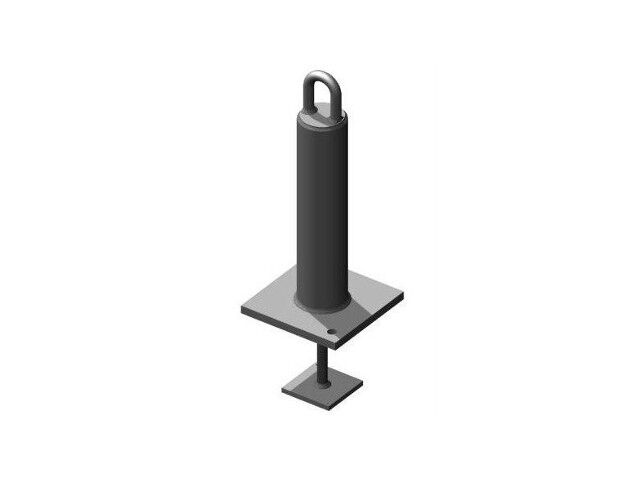

Roof Anchors – Cast In Place – Single Stud

  • The standard height of a single stud roof anchor is 12 and 15 inches.
  • This anchor suits all 3-1/2 inch flashings.
  • Generally, if the base plate is fully embedded and flush with the concrete, a standard conventional flashing can be used.
  • Using a single stud anchor is more cost-effective than a four stud anchor of the same height (see benefits of a four stud anchor for more information).
  • The maximum height of this anchor is limited to 15 inches (over 15 inches must be four-stud anchor is required).

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.



For further inquiry on this product, please contact us at 1800 461.0575

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height Slab Thickness Min. Embed Depth Flashing Type Flashing Height
EF-FA-PBE74-00A1-0406S 4″ 6″ 5-1/4″
EF-FA-PBE74-00A1-0506S 5″ 6″ 5-1/4″
EF-FA-PBE74-00A1-0606S 6″ 6″ 5-1/4″
EF-FA-PBE74-00A1-0706S 7″ 6″ 5-1/4″
EF-FA-PBE74-00A1-0806S 8″ 6″ 5-1/4″
EF-FA-PBE74-00A1-0906S 9″ 6″ 5-1/4″
EF-FA-PBE74-00A1-1006S 10″ 6″ 5-1/4″
