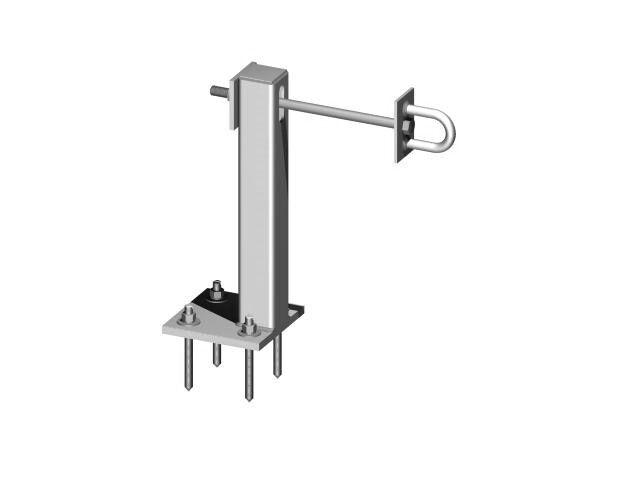

A bolt through wall anchor with HSS reinforcing on a white background
Permanent roof anchor adhesive for end corner support on a white background

Wall Anchor – Adhesive with HSS Reinforcing

  • This anchor is used for applications where the wall requires additional reinforcing.
  • These anchors are typically used for retrofit applications where the underside of the roof/concrete slab is not accessible.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.



For further inquiry on this product, please contact us at 1800 461.0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height Total Wall Thickness (including HSS Post) Slab Thickness Min. Embed Depth Min. Wall Bolt Length Application Epoxy Type
FA-PB93SG-A4S-2408 20″ to 22″ 5-8″ 6″ 5″ 12″ For Ontario HVU Glue Capsule
FA-PB93SG-A4S-2412 20″ to 22″ 9-12″ 6″ 5″ 16″ For Ontario HVU Glue Capsule
FA-PB93SG-A4S-2416 20″ to 22″ 13-16″ 6″ 5″ 20″ For Ontario HVU Glue Capsule
FA-PB93SG-A4S1-2408 20″ to 22″ 5-8″ 6″ 5″ 12″ For US HY-200A 2 part epoxy
FA-PB93SG-A4S1-2412 20″ to 22″ 9-12″ 6″ 5″ 16″ For US HY-200A 2 part epoxy
FA-PB93SG-A4S1-2416 20″ to 22″ 13-16″ 6″ 5″ 20″ For US HY-200A 2 part epoxy
