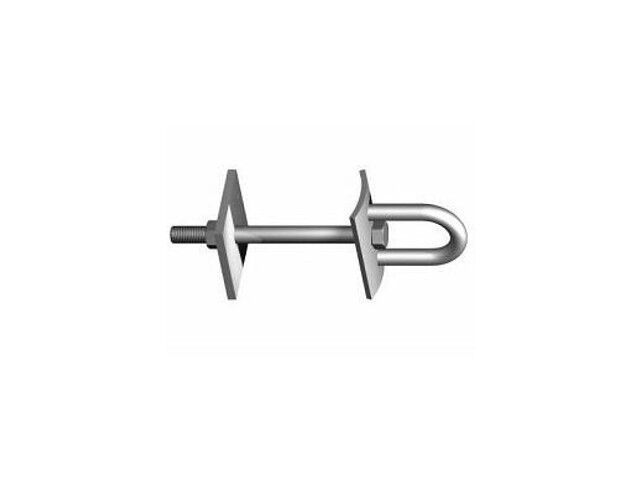

Bolt-through wall anchor with curved steel on a white background

Wall Anchor – Bolt Through – Curved Steel

  • This anchor is secured to a curved steel structure by bolting through it.
  • The bolt length can vary depending on the structure’s thickness.
  • Access to the other side of the structure must be easily accessible in order to secure the backplate and the hardware.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.



For further inquiry on this product, please contact us at 1800 461.0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Tube O.D. Bolt Length Application
EF-FA-PB71SM-02-35 3-1/2″ 9″ Round Tube
EF-FA-PB71SM-02-45 4-1/2″ 9-1/2″ Round Tube
FA-PB71SM-02-4 4″ 9″ Round Tube
