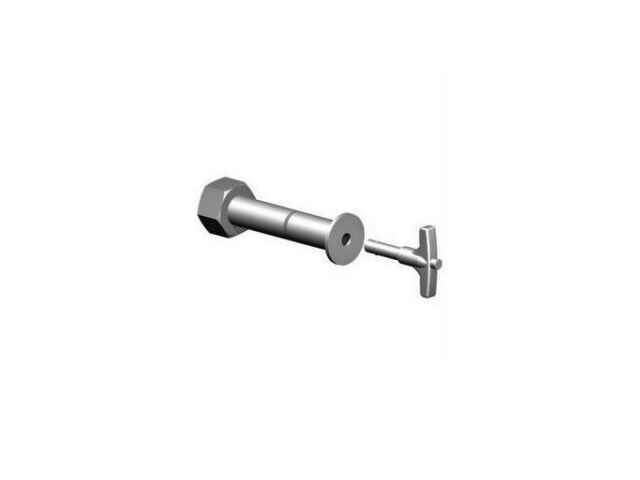

Intermittent Stabilization Anchors – Cast in Place Flush Mounted

  • Detent Pin usually will be provided by others.
  • Flush with a concrete wall.
  • Wall must be at least 6 inches thick in order to have a Minimum stud embedment depth is 5 inches.
  • The maximum capacity is 600 lbs in any direction (factored load).
  • Spring-loaded detent pin sold separately.
  • ISAs (buttons) are used to stabilize a platform, to prevent movement on the building facade.

Download our Stabilization Systems Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1800 461.0575


Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Embedment Depth Slab Thickness Min. Capacity
FA-STB-FGRD1312-04 4″ 5″ 600lbs
FA-STB-RDN1312-04 4″ 5″ 600lbs
