Roof Anchor - Bolt Through - 4 Studs with Reinforcing - Horizontal Flat U-Bar - Recessed

Roof Anchor – Bolt Through – 4 Studs with Reinforcing – Horizontal Flat U-Bar – Recessed

  • Recessed steel pier anchors can be used on terraces/balconies.
  • Their low profile allows them to be concealed under pavers and in recessed openings within concrete slabs.
  • The horizontal u-bar makes these anchors more compact than similar anchors with vertical u-bars.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.

Downloads
  1. PDF - Marketing Detail (available soon)
  2. DWG - Marketing Detail (available soon)
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height Slab Thickness Bolt Length [in] Add Ins Reinforcing Back Plate Size

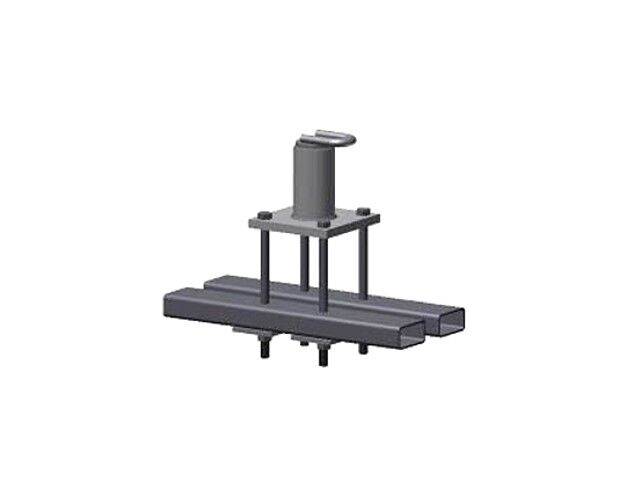

EF-FA-PBE73-50A4-1410S-R 14″ 10″ 14″ None HSS 4 x 2″ 4″ x 4″ x 3/8″
FA-PBE73-50A4-0508S-R 5″ 5-8″ 12″ None HSS 4 x 2″ 4″ x 4″ x 3/8″
FA-PBE73-50A4-0508S-R-C 5″ 5-8″ 12″ Cover Plate HSS 4 x 2″ 4″ x 4″ x 3/8″
FA-PBE73-50A4-0710S-R72 7″ 10″ 14″ None HSS 4 x 2″ 4″ x 4″ x 3/8″
FA-PBE73-50A4-1008S-R 10″ 5-8″ 12″ None HSS 4 x 2″ 4″ x 4″ x 3/8″
FA-PBE73-50A4-1008S-R-C 10″ 5-8″ 12″ Cover Plate HSS 4 x 2″ 4″ x 4″ x 3/8″
