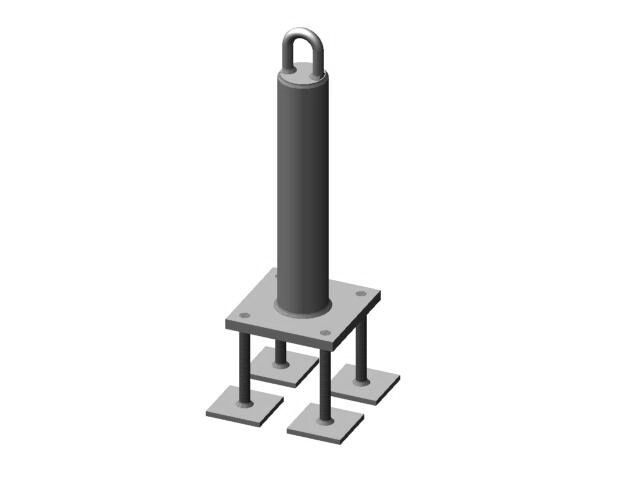

Roof Anchors – Cast In Place – with Back Plates

  • The standard height of this four-stud plate roof anchor is 12, 15 and 18 inches.
  • This anchor suits all 3-1/2 inch flashings.
  • Generally, if the base plate is fully embedded and flush with the concrete, a standard conventional flashing can be used.
  • This anchor is designed for a thin slab (less than 6 inches).
  • The General Contractor MUST cast the base plate of the anchor so that it is fully embedded and/or flush with the concrete slab, otherwise, the anchor may not meet load requirements.
  • If the anchor sits directly on the bottom of the concrete form, ensure that the area below is designed with a drop/finished ceiling otherwise the plates will be visible when the form is removed.
  • The maximum height of this 3-1/2 inch anchor is limited to 18 inches.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.



For further enquiry on this product please get in touch with us on 1800 461.0575

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height Slab Thickness Min. Embed Depth Add Ins Flashing Type Flashing Height
EF-FA-PBE74-00A4-0605S 6″ 5″ 4-1/4″ None
EF-FA-PBE74-00U4-1805EPS 18″ 5″ EPICORE SLAB 5″ None
EF-FA-PBE74-02I4-2205S 22″ 5″ 4-1/4″ None
EF-FA-PBE74-02U4-2005S 20″ 5″ 4-1/4″ None
FA-PBE74-00A4-1205S 12″ 5″ 4-1/4″ None
FA-PBE74-00A4-1205S-FL1 12″ 5″ 4-1/4″ Flashing Conventional 8″
FA-PBE74-00A4-1505S 15″ 5″ 4-1/4″ None
FA-PBE74-00A4-1505S-FL1 15″ 5″ 4-1/4″ Flashing Conventional 8″
FA-PBE74-00A4-1805S 18″ 5″ 4-1/4″ None
FA-PBE74-00A4-1805S-FL1 18″ 5″ 4-1/4″ Flashing Conventional 8″
FA-PBE74-00A4-1805S-FL2 18″ 5″ 4-1/4″ Flashing Conventional 11″
FA-PBE74-03I4-2405S 24″ 5″ 4-1/4″ None
