Roof Anchor – Adhesive – Recessed

  • Anchors consist of Stainless Steel Base Plate, Stainless Steel adhesive Studs complete with a stainless steel U-Bar.
  • The primary benefit of recessed anchors is their reduced visibility.

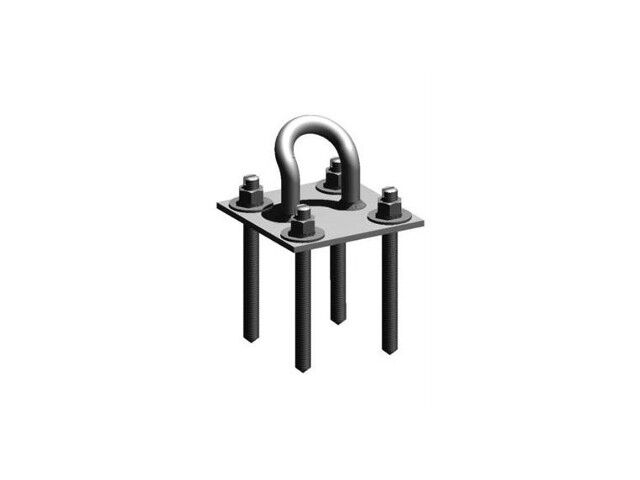

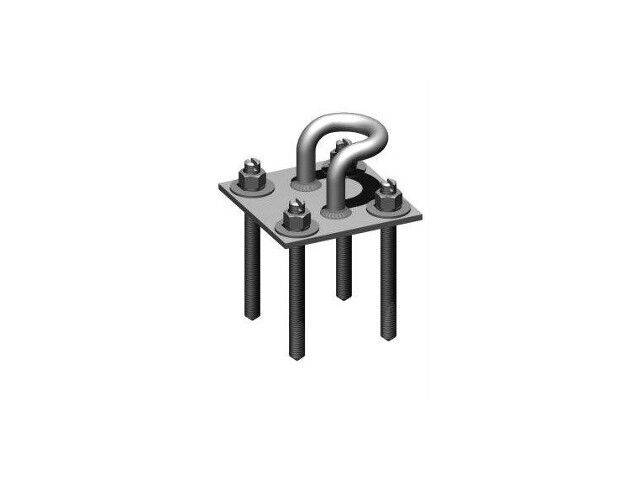

  • Recessed adhesive anchors are available in straight, 45 and 90 degree angles.
  • If installed under pavers, they can be fully concealed.
  • This recessed anchor is installed on a roof terrace when the overall thickness of the built up roof including the pavers is less then 4 inches thick.
  • All adhesive anchors are to be load tested.
  • Concrete slabs should be a minimum of 6″ thick in order to accommodate the 5″ required embedment depth.
  • The total built up roofing including below the pavers not to exceed 3 inches otherwise the paver will have to be cut out.

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.



For further inquiry on this product, please contact us at 1800 461.0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Slab Thickness Min. U-Bar Orientation Embed Depth Add-Ins Region  Epoxy Type

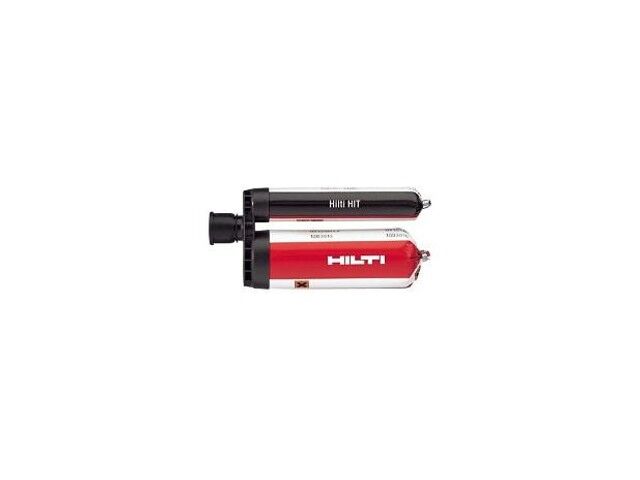

EF-FA-PB48S-B4S1-02 6″ Straight 5″ None USA HY-200A 2-part epoxy

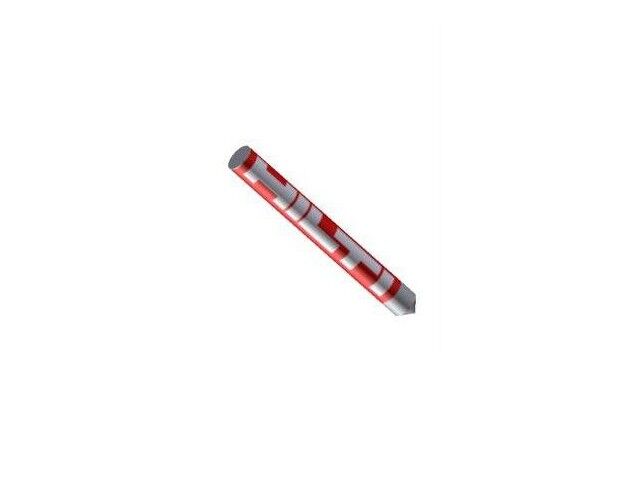

FA-PB48S-B4S 6″ straight 5″ None Ontario/Canada HVU Glue Capsule
FA-PB48S-B4S-C 6″ straight 5″ Cover Plate Ontario/Canada HVU Glue Capsule
FA-PB48S-B4S1 6″ straight 5″ None USA HY-200A 2-part epoxy
FA-PB48S-B4S1-C 6″ straight 5″ Cover Plate USA HY-200A 2-part epoxy
FA-PB48S45-B4S 6″ 45 Degree 5″ None Ontario/Canada HVU Glue Capsule
FA-PB48S45-B4S-C 6″ 45 Degree 5″ Cover Plate Ontario/Canada HVU Glue Capsule
FA-PB48S45-B4S1 6″ 45 Degree 5″ None USA HY-200A 2-part epoxy
FA-PB48S45-B4S1-C 6″ 45 Degree 5″ Cover Plate USA HY-200A 2-part epoxy
FA-PB48S90-B4S 6″ 90 Degree 5″ None Ontario/Canada HVU Glue Capsule
FA-PB48S90-B4S-C 6″ 90 Degree 5″ Cover Plate Ontario/Canada HVU Glue Capsule
FA-PB48S90-B4S1 6″ 90 Degree 5″ None USA HY-200A 2-part epoxy
FA-PB48S90-B4S1-C 6″ 90 Degree 5″ Cover Plate USA HY-200A 2-part epoxy
